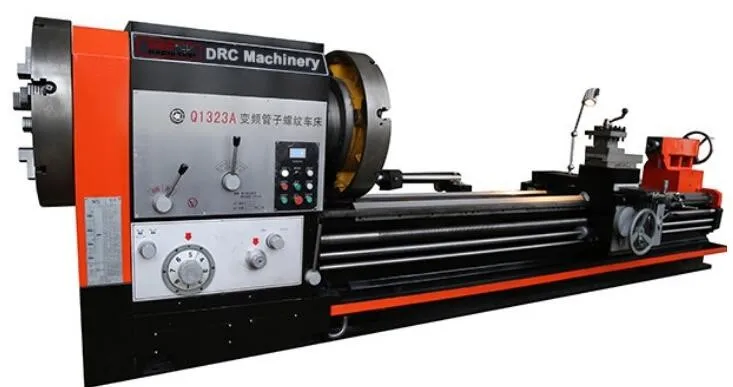

Newest High precision Pipe Thread Turning lathe Q1323A Oil Country Lathe Pipe Threading Lathe Machine For Sale

FOB Reference Price:Get Latest Price
$9,000.00 - $27,000.00 / Sets | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
630MM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DRC
Model Number:
Q1323A
Voltage:
220/380V
Dimension(L*W*H):
4000/1800/1750MM
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Warranty:
1 Year
Guideway Width:
550mm
Max. Swing Over Bed:
630mm Pipe Thread Processing Lathe
Max. Swing Over Carriage:
350mm horizontal pipe thread lathe machine
Hole through spindle:
230mm pipe threading lathe machine price
Max.workpiece length:
1500mm pipe thread cutting lathe
Processing wokpiece precision:
IT7 big bore spindle
Workpiece surface roughness:
Ra1.6 turning machine for pipe
Max.processing pipe diameter:
50-220 mm pipe threading lathe
Rapid traverse speed:
5000mm/min pipe threading lathe machine
Precision:
High Precision Lathe Machine
Power(W):
11kw
Weight:
6000/7500 KG
Max. Swing Diameter:
630MM
Supply Ability
Supply Ability:
20 Set/Sets per Month Pipe Thread Turning lathe,Oil Country Lathe Pipe Threading Lathe
Packaging & Delivery
Packaging Details
Packing In Seaworthy Wooden Case
Newest High precision Pipe Thread Turning lathe Q1323A Oil Country Lathe Pipe Threading Lathe Machine For Sale
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods. Can turn metric, imperial cylindrical, tapered pipe thread, can also be used to replace outer lathes, boring holes, internal and external taper surfaces, and planes, etc. in lathes. The lathes are widely used in the petroleum sector, the gold manufacturing department, chemical industry, hydropower, and geological exploration. Other departments deal with the machining of drill pipes, drill boats, and casings.

We are a professional manufacturer specialized in the cnc and conventional pipe threading lathe machine. CNC pipe threading lathe is a special model of CNC turning lathe ,mainly used in oil and gas field, machinery manufacturing, geological exploration, thread repair function and so on.

The machine tool is a special machine tool for thread turning, and the bed is processed by natural aging treatment. The surface of the bed adopts super audio frequency quenching treatment, and the hardness reaches above HRC52. The cone size (master) and tailstock are all treated with rhodium-plated chrome plating. The saddle is treated with film and the movement of the saddle is light, which reduces the wear of the guide rail of the bed. The slide plate is provided with fast feed, which greatly improves the working efficiency. The appearance is novel and beautiful. Generous, easy to operate. Widely used in the oil sector, Zhijin Department, chemical and hydropower, geology and so on. Can turn metric and inch cylindrical conical pipe thread, can also be turned outer circle, boring hole, inside and outside the cone surface.

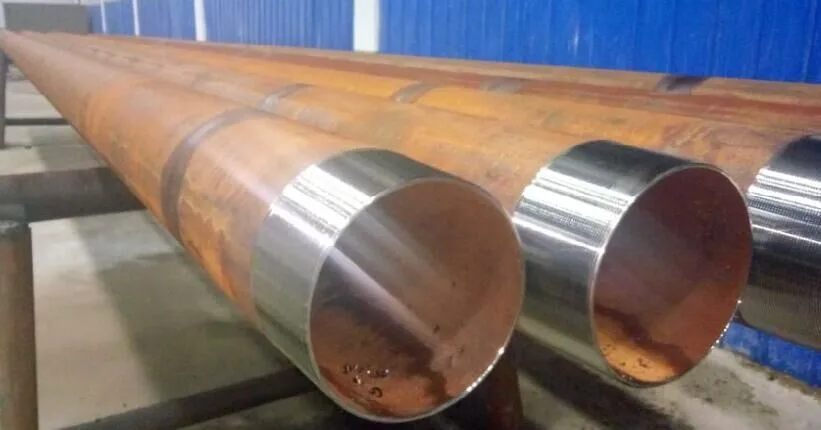

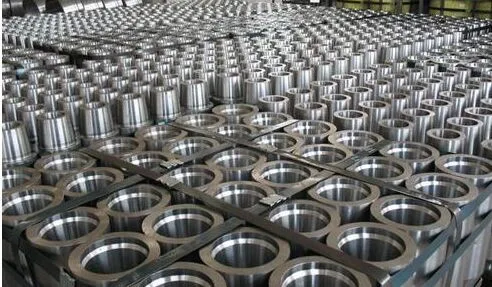

The application fields of Pipe Thread Lathe machine are the Processing and repairs of drill pipe, drill collar, joint, kelly bar and sleeve of Oil sector, Metallurgic Industry, Geological Prospecting, Chemical Industry & Hydropower.

We use electric furnace smelting, resin sand molding casting technology,avoid sand holes, stoma casting internal defect effectively, all the accessories are assayed by imported spectrum analyzer, it assures the quality of the casting . The casting had been through second thermal aging treatment with good stability.

Model and specifications
Q1323A×1500mm
Guideway width
550mm
Max.swing over bed
630mm
Max.swing over carriage
350mm
Max.workpiece length
1500mm
Processing length
1350mm
Hole through spindle
Φ230mm
Max.processing Pipe diameter
50-220 mm
Number of spindle speed changes
2steps 8-120/ 120-400
Range and number of whitworth thread
26/14-1
Range and number of metric thread
22 1-15
Power of main motor
11kw
Max.processing length of taper ruler
500 mm
Rapid traverse speed
5000mm/min
Steady rest & Range:
Ф230mm
Chuck 4 JAW
Ф520mm
Chuck 3 JAW
Ф500mm  Optional
Overall dimensions:
4000×1800×1750
Packing size
4600×2250×2000
Gross / net weight:
6000/7500
Voltage: 380 3 phase / 50 Hz
380 3 phase / 50 Hz

Whole structure


The bed of floor type is the whole structure. The rigidity and width of guide way on the bed of lathe is good enough.

Pipe Lathe Accuracy test


First step of the accuracy test of the equipment is testing the repeat accuracy of X and Y axis with Renishaw laser interometer imported from Britain.

 Electric furnace smelting


We use electric furnace smelting, resin sand molding casting technology,avoid sand holes, stoma casting internal defect effectively.

Process Details
Ender Users&Delivery
Related Products

Slant Bed CNC Lathe

CNC Lathe


Gantry Milling Machine


               Vertical Lathe

              Conventional Lathe

        Pipe Threading Lathe

Why Choose Us

COMPANY INTRODUCTION:

DRC is a group company ,which is professional in products and sales of advanced CNC machine tools . Acting full operation of the six machine tool production company's overseas sales.
DRC is located in Dalian, which is one of the largest seaport cities of China.Our products exported to Russia, Dubai, Hungary, Italy, Argentina, the Philippines, India, Iran, more than 50 countries.
DRC has six factories in China, which covers many kinds of mechanical equipment.
Product Range:
◎CNC Lathe
Conventional Lathe,
Vertical Lathe
Machining Center

◎Wheel Repair Lathe Machine
◎Planer & Slotting Machines
◎Machine Accessories
Boring and Milling Machine
Dental Milling Machine
Glass Tempering Furnace
Special Machine for Pipe Threading ,Valve Milling, End Facing and so on

Large diameter spindle bore pipe thread lathe

After-Sale Service
FAQ

1. What is your minimum order quantity and warranty?

 MOQ is one set, and warranty is one year.

2.What CNC system do you use?

FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3.When is the delivery time?

We will delivery it within 90 days after received your payments

4. How to handle the warranty period?

During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.

5.Can your company send the technical personnel to our company and direct our workers for free?

When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
