Best price slant bed metal cnc automatic lathe machine for sale

FOB Reference Price:Get Latest Price
$19,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
650MM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
R&C
Model Number:
iCT625Y
Voltage:
380V50HZ
Dimension(L*W*H):
3400*1850*1800
Certification:
ISO9001 CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Warranty:
1 Year
CNC Control System:
FANUC
Key Selling Points:
Competitive Price
Machine Type:
Best price slant bed metal cnc automatic lathe machine for sale
Spindle head:
15/18.5 KW
maximum swing:over bed 650mm:
over bed 650mm
maximum swing::
over slide 400mm
Main drive::
4000rpm
Space requirements::
7
Spindle max. speed::
4000 rpm
Max. swing over bed::
650mm mm
Control system:
SIEMENS FANUC and other customer request
Max. cutting length::
400mm
Max. Swing Diameter:
650MM
Power(W):
15/18.5 KW
Weight:
5500kg
Supply Ability
Supply Ability:
40 Set/Sets per Month New Style IHT521 CNC Metal worker Mini Lathe Machine
Packaging & Delivery
Packaging Details
Suitable for sea transportion as international standard
Best price slant bed metal cnc automatic lathe machine for sale
Port
DALIAN
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

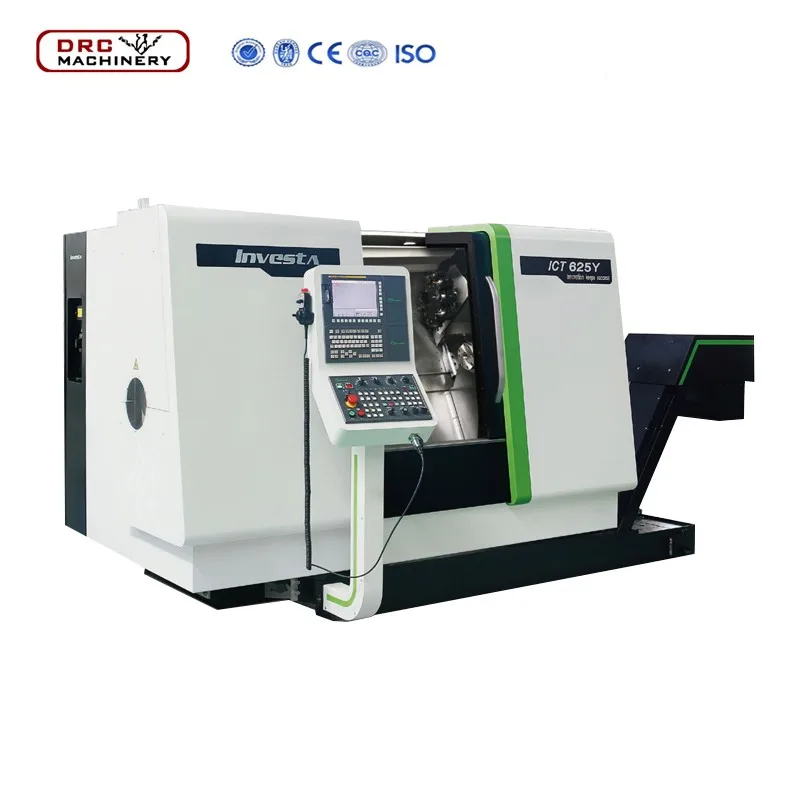

Best price slant bed metal cnc automatic lathe machine for sale

double spindle double turret turning center

Slant Bed Metal cnc Lathe Features:

Compact design with HT300 high tension Meehanite cast-iron machine bed.
Perfect accessibility and optimal working depth.
The ideal machine for training, with minimal space requirement and suitable working depth to the spindle.
Orthogonal Y axis with +60 stroke.
Most updated control technology: FANUC Oi-TF or SIEMENS.

 New small metal lathe iCT 625Y:

Maximum workpiece length:550 mm.
maximum swing:over bed 650mm over slide 400mm.
Main drive:4000rpm.
Spindle power:15/18.5 KW.
Space requirements:7m².

iCT Series technology:

slant bed turret metal machine cnc lathe is made of HT300 grey cast iron, which is integrated with 45 degree inclined bed. It ensures the stability and perfect machining effect of the machine tool.
Larger turning diameter and cutting diameter are suitable for more product areas.
The maximum inner diameter of spindle bearing is 110mm, which can guarantee the requirement of power cutting.
The drive shaft can be selected by the linear grating ruler, which provides higher precision and stability for the machine tools.
12 cutter servo turret. BMT cutter.

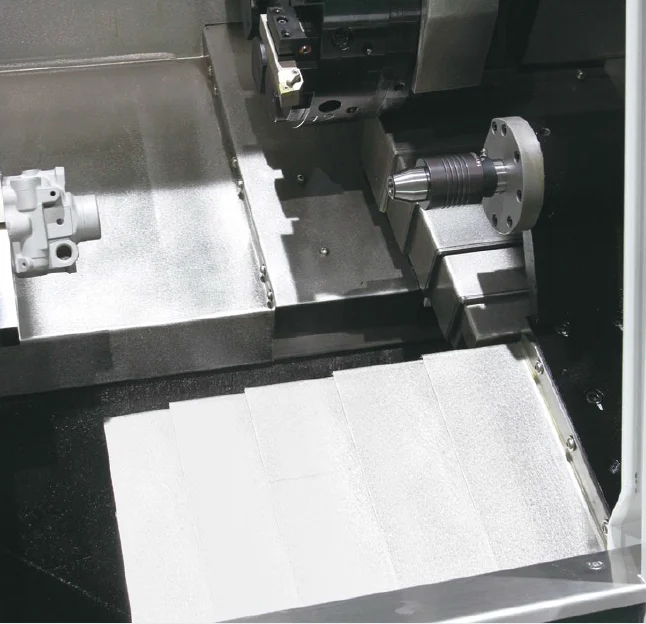

Hydraulic programmable tailstock options available.
The right and rear rows of chip removal machines are optional, suitable for the best choice of automation.

Slant Bed cnc Lathe Machine Main Technical Parameters:

Spindle head:FL 170 h5.
Spindle max. speed:4000 rpm.
Max. torque:265/305 Nm.
Spindle power:15/18.5KW.
Chuck diameter:250/310mm.
Spindle bore:87mm.
Front bearing diameter:110 mm.
Spindle bearing lubrication :Grease Model.
Linear motion lubrication :Grease Model.

Turret Type Slant Bed cnc Lathe Machine Working area:
Center distance:685 mm.
Max. swing over bed:650mm mm.
Max. cutting length:400mm.
Maximum bar capacity:65/75 mm.
Travel Z:600mm.
Travel x:24000.
Travel y:±60mm.

Ballscrew:
XZ axies ballscrew DxP:38X10 mm.

slant bed cnc lathe machine tools

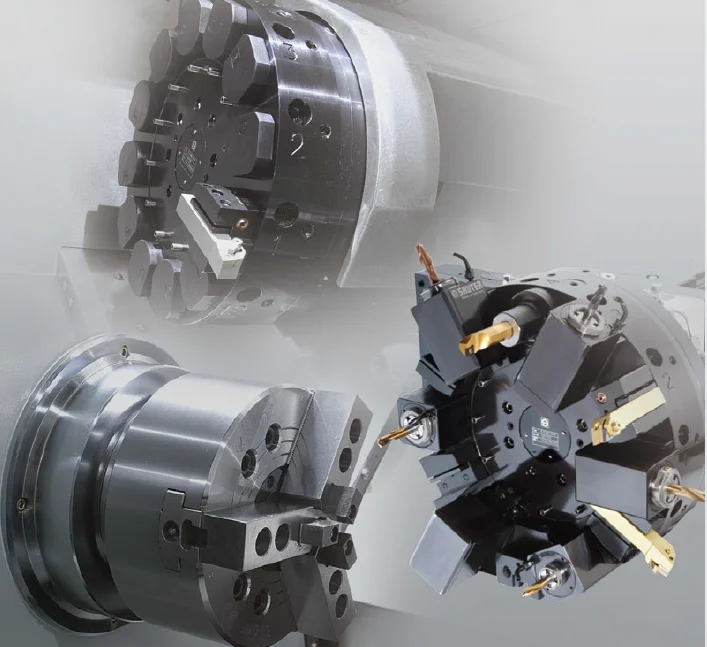

Tool attachments:
Driven tool turret:SAUTER Model .
No. of tool stations:12.
Turret disk type:BMT55.
Max. clamping force:4000 N.
Tool pole:25×25 mm.
Maximum speed:4000 rpm.
Power:3.3 KW.
Torque:50 Nm.
Servo turret:BMT55.

Electrical specifications:
Voltage:380±10%.
Frequency:50±1%.
Max. installed power: 45/50 KVA.
Connection cables section:4X10 mm.

Process Details

Rich configuration


Electric turret, servo turret, power turret; high-power motors, high torque. Motor; large diameter hollow cylinder; chuck; drawer-type water tank; on the knife;

Oil mist separator and other options are available.

cnc Turret tool lathe machine Slant bed type

Feed:

Rapid traverse X/Z :30m/min.
Rapid traverse Y :18m/mn.

Feed force:
Feed force X/Z:4500Nm.
Number of axis:3.

Measuring system:
XZ axes measuing system:Absolute rotative.
(XYZ);DGQ344I Preason: 0.008/0.008/0.010mm.

Hydraulic unit:

Max, working pressure:55 bar.
Reservoir capacity:15 I.
Pump flow:24 V min.

Oil- based coolant system:
Capacity with tank:100 I.
Pump delivery :30 V min.
Pump pressure:5 bar.

Control system:

FANUC/ Siemens:0TF/828D/840D.

Optional configuration:
FANUC or SIEMENS CNC system.
Linear scale by Heidenhain.
Sub- spindle option.
Tool probe option.
Oil mist separator option.

Related Products
Ender Users&Delivery
Why Choose Us

COMPANY INTRODUCTION:

DRC is a group company ,which is professional in products and sales of advanced CNC machine tools . Acting full operation of the six machine tool production company's overseas sales.
DRC is located in Dalian, which is one of the largest seaport cities of China.Our products exported to Russia, Dubai, Hungary, Italy, Argentina, the Philippines, India, Iran, more than 50 countries.
DRC has six factories in China, which covers many kinds of mechanical equipment.
Product Range:
CNC Lathe
Conventional Lathe,
Vertical Lathe

Wheel Repair Lathe
◎Planer & Slotting Machines
◎Machine Accessories

Machining Center
Boring and Milling Machine
Dental Milling Machine
Glass Tempering Furnace
Special Machine for Pipe Threading ,Valve Milling, End Facing and so on

After-Sale Service
FAQ
A: What is your minimum order quantity and warranty?
B: MOQ is one set, and warranty is one year.
A: Could you please tell me the payment way of your company?
B:The payment way is general T/T or L/C.
A: Do you have CE or any other certificate?
B: We have certifies, such as CE, Invention patent certificate etc.
A: What is the delivery time?
B: Some models are inshore , some models need about 2 months or more.
