Factory Low price Outlet Brand High Efficiency MVL1060 Vertical Machining Centre for metal CNC Turning Center

FOB Reference Price:Get Latest Price
$25,000.00 - $45,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MVL1060
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
No. of Spindles:
Single
Condition:
New
Type:
Vertical
Place of Origin:
Jiangsu, China
Brand Name:
DRC
Voltage:
380V/50Hz
Dimension(L*W*H):
3500x2700x2650 mm
Weight (T):
7 T
Certification:
ISO9001 CE
CNC Control System:
FANUC
Table Travel (X) (mm):
1000 mm
Table Travel (Y) (mm):
600 mm
Table Travel (Z) (mm):
650 mm
Table Size (mm):
1300/600 mm
Positioning Accuracy (mm):
0.01 mm
Repeatability (X/Y/Z) (mm):
0.005
Number of Axes:
5
Spindle Motor Power(kW):
11/15
Max. Table Load(kg):
1000 kg
Min. Time of Tool Change(s):
2
Tool Magazine Capacity:
24
Key Selling Points:
High-accuracy
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Worktable size:
1300x600 mm
Maximun Load of table:
1000 kg
Travel for X/Y/Z axes:
1000/600/650 mm
CNC system:
high precision , FANUC-Oi MF
Spindle speed:
8000 rpm
Spindle specifications:
BT40/150
Spindle power:
11/15kw
Positioning accuracy:
0.008mm
Accuracy of repeated positioning:
0.005mm
Item name:
MVL1060 Vertical Machining Centre for metal CNC Turning Center
Supply Ability
Supply Ability:
5000 Set/Sets per Month DRC Brand High Efficiency MVL1060 Vertical Machining Centre CNC
Packaging & Delivery
Packaging Details
Seaworth Packing
DRC Brand High Efficiency MVL1060 Vertical Machining Centre CNC Turning Center With Price
Port
Dalian
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

Factory Outlet Brand High Efficiency MVL1060 Vertical Machining Centre for metal CNC Turning Center With Price

MVL1060 is mainly used in medium-sized parts and molds, the workpiece in a fixture may be for the completion of milling, drilling, boring, rearing and other process of processing, it can be single used and can also be used for multiple opeartions on parts in a production lile. Cutting with powerful, high-speed positioning mechanical and electric intergration, automatic chip control and security protection features.
MV series universal CNC vertical machining center is mainly used for the processing of medium-sized parts and molds. After a workpiece is clamped, the workpiece can be continuously processed by milling, drilling, boring, and reaming. It can be used on a single table or on multiple lines. With powerful cutting, to tell the location, mechanical and electrical integration, automatic chip removal, safety protection and easy operation and so on.



Machine Type
MVL1060
Worktable ( L x W )
1300 x 600mm
Maximun load of table
1000kg
T-slot
5-18 x 120mm
X/Y/Z axis travel
1000/600/650mm
Distance from spindle nose toworkbench
150-800mm
Distance from spindle center tocolumn guide
700mm
CNC system
FANUC-0i MF
Rapid shift of X/Y/Z axis
24/24/20m/min
Cutting feed speed
8m/min
Standard tool quantity
Arm 24T
Tool length and diameter
Φ80/300mm
Tool exchanging manner
Pneumatic
Tool exchanging time
Arm 2.5ssec
Positioning accuracy
0.008mm
Repeated accuracy
0.005mm
Spindle speed
8000r.p.m
Spindle specifications
BT40/Φ150
Spindle drive manner
Belt
Spindle motor power
11/15kw
Air demand
≥6kg/cm²
Air pressure flux
≥0.3m³/min
Integrated weight
7000kg
Overall dimension
3500 x 2700 x 2650mm

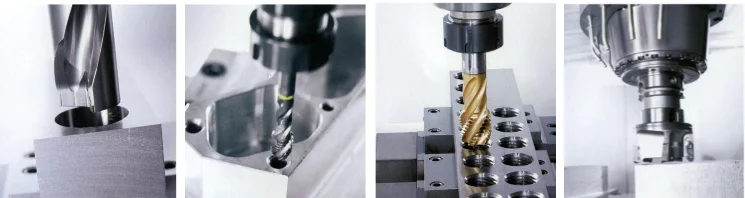

Process Details
