High Accuracy Gantry Machining Center GMF4022 Gantry Milling Machine

FOB Reference Price:Get Latest Price
$70,000.00 - $210,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GMF4022
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
No. of Spindles:
Twin
Condition:
New
Type:
Gantry
Place of Origin:
China
Brand Name:
R&C
Voltage:
380V
Dimension(L*W*H):
9900*4650*5167
Weight (T):
37000 T
Certification:
ISO CE
CNC Control System:
FANUC
Table Travel (X) (mm):
4200 mm
Table Travel (Y) (mm):
2200 mm
Table Travel (Z) (mm):
1000 mm
Table Size (mm):
4000/1800
Positioning Accuracy (mm):
0.002 mm
Repeatability (X/Y/Z) (mm):
0.001
Number of Axes:
5
Spindle Motor Power(kW):
22/26
Max. Table Load(kg):
12000 kg
Min. Time of Tool Change(s):
2
Tool Magazine Capacity:
24
Key Selling Points:
High-accuracy
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Machine Type:
GMF4022 CNC gantry milling machine
CNC system:
FANUC 0i MF
Spindle speed:
6000 Rpm
Precision:
0.021mm
Spindle specifications:
BT50
Gantry width:
1350
Automatic Tool Changer:
24
Application:
Molding Processing
Processing:
Metal Cutting Cnc Milling Machine
Color:
Custom-made
Supply Ability
Supply Ability:
20 Set/Sets per Month Gantry Machining Center GMF4022 Gantry Milling Machine
Packaging & Delivery
Packaging Details
wooden casing
High Accuracy Gantry Machining Center GMF4022 Gantry Milling Machine
Port
Shanghai Port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Description

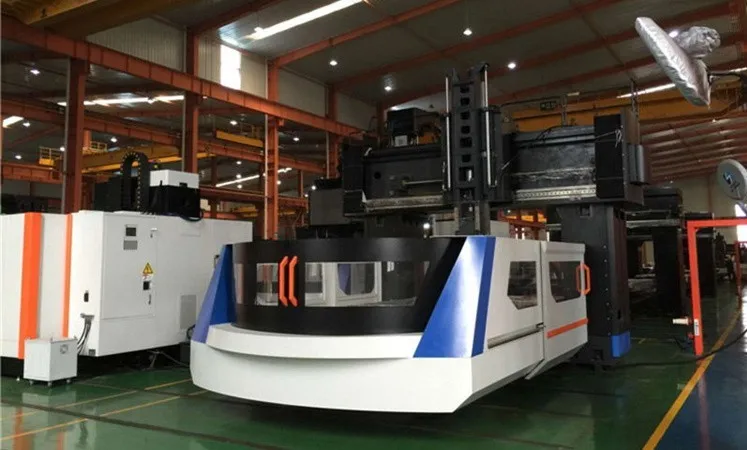

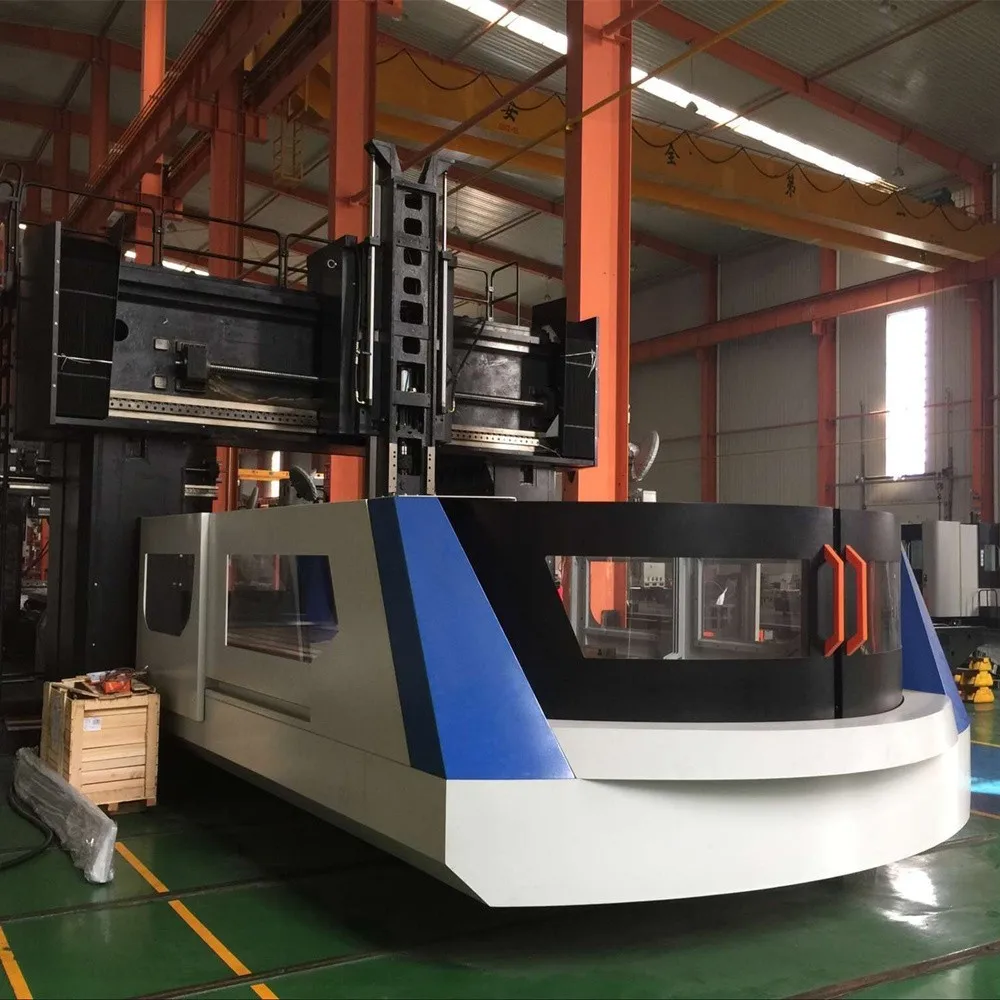

High Accuracy Gantry Machining Center GMF4022 Gantry Milling Machine

Main Feature

1.GMF series can provide a high-performance mechanical system and a software interface which can be operated easily.
2.Design of machine tool ensures high rigidity of machine body
3.The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining.
4.Optional 90°milling head realizes five-face machining. Optional universal milling head realizes multi-angle machining.
5.Screw supporting structure is designed for above more than 5 meters (including 5 meters) gantries.

Main Parameter
item
Unit
GMF3022


GMF4022

GMF5022

Worktable size
mm
3000×1800

4000×1800

5000×1800

Max loading of worktable
kg
12000

12000


18000

T-slot
mm
9-22×200

Gantry width
mm
2230

Travel for X/Y/Z axis
mm
3200/2200/1000

4200/2200/1000

5200/2200/1000

Distance from spindle nose to table surface
mm
310-1310

CNC system

FANUC 0i-MF
Rapid shift of axes of X/Y/Z
m/min
12/12/10
10/12/10

10/12/10

Max cutting feed speed
m/min
7
Standard tool quantity

BT50/32

Positioning accuracy
mm
0.021
Accuracy of repeated positioning
mm
0.02
Motor power of spindle
KW
22/26

Integrated weight
kg
32000

37000

42000

Overall dimension
mm
7705×4650×5167
(Travel peak)

9900×4650×5167
(Travel peak)

11840×4650×5167
(Travel peak)

Process Details

Bed Body

The structure of the machine tool isanalyzed with ANSYS at all stages from foundation design to gurantee high speed and high precision continouos machining.A simulation testing for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

Spindle

The gear type spindle variable speed device provides powerful torque during peration at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range.

By enlarging diameter of spindle ends and flanges, the spindle with roller bearing could strengthens all factors related to spindle system.

ATC(Automatic Tool Changer)

Automatic tool changer is composed of tool maagazine and tool changing arms.Automatic toolchanger is installed separately from machine tool with the purpose of preventing adverse influences of vibration during running of automatic toolchanger and other reasoons on precision. Tool selection adopts the method of fixed address in the shartest path.
