DBM-130B cnc milling and boring machine Horizontal Boring Machine

FOB Reference Price:Get Latest Price
$13,000.00 - $20,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
DBM-130B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Table Size (mm):
2500/2500
Table Travel (X) (mm):
4500 mm
Table Travel (Y) (mm):
3500 mm
Table Travel (Z) (mm):
2000 mm
Number of Axes:
3
Max. Table Load(kg):
20000
Travel (W-axis) (mm):
700 mm
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Positioning Accuracy (X axis) mm:
0.005
Positioning Accuracy (Y axis) mm:
0.005
Positioning Accuracy (Z axis) mm:
0.003
No. of Spindles:
Twin
Range of Spindle Speed(r.p.m):
3000 r.p.m
Spindle Motor Power(kW):
22/30
Type:
Vertical
Condition:
New
CNC or Not:
CNC
Place of Origin:
Jiangsu, China
Brand Name:
DRC
Voltage:
220/380
Dimension(L*W*H):
9055/8500/8115
Weight (T):
55 T
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Long Service Life
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
Local Service Location:
Canada, Turkey, United Kingdom, United States, France, Germany, Saudi Arabia, Indonesia, Mexico, Russia, Malaysia, Argentina, South Korea, UAE, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan
Showroom Location:
Canada, Turkey, United Kingdom, France, Germany, Viet Nam, Saudi Arabia, Indonesia, Russia, Kenya, Argentina, South Korea, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Malaysia
Product type:
cnc milling and boring machine Horizontal Boring Machine
X-Y-Z axis travel (standard):
4500/3500/2000
Machine type:
heavy type horizontal boring machine equipment
W-axis travel (standard):
700
Spinde diameter:
130
Spindle taper:
ISO 50
Product name:
DBM-130B horizontal milling and boring machine CNC lathe for sale
Capacity of tool magazine:
60
Spindle motor:
FANUC 22/30
Motor Power (kw):
22/30
Supply Ability
Supply Ability:
20 Set/Sets per Month DBM-130B horizontal milling and boring machine CNC lathe for sa
Packaging & Delivery
Packaging Details
DBM-130B horizontal milling and boring machine CNC lathe for sale
wooden casing
Port
Dalian
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Photos of Mahine

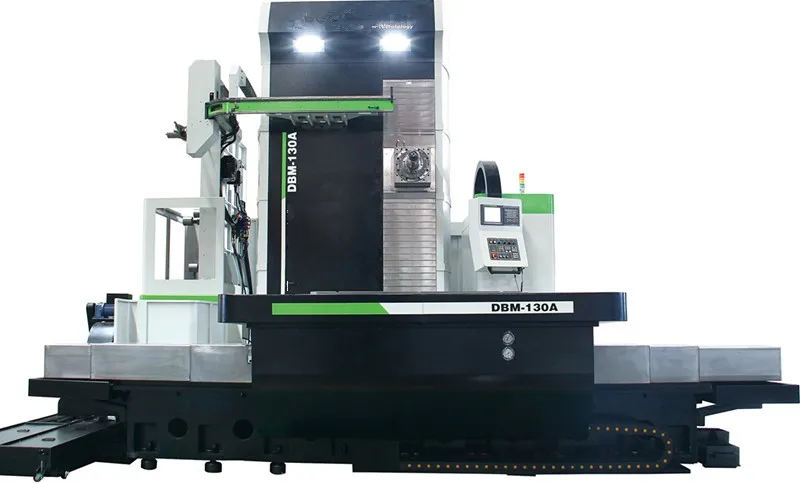

DBM-130B horizontal milling and boring machine CNC lathe for sale

Main Parameters
Model Unit DBM-130A DBM-130B
X-axis travel (standard) mm 3500 4500
X-axis travel (optional) mm 4500/5500 5500
Y-axis travel (standard) mm 2600 3500
Y-axis travel (optional) mm 3500
Z-axis travel (standard) mm 1500 2000
Z-axis travel (optional) mm 2000 2500
W-axis travel (standard) mm 700 700
Spindle
Center of spindle worktable surface mm 0~2600 0~3500
Nose of spindle to work center mm 100~2000 100~2000
Spinde diameter mm 130 130
Spindle taper   ISO 50 ISO 50
Rotating spindle speed (standard) rpm/min 35~3000 35~3000
Number of steps of rotating speed of spindle   2 Steps 2 Steps
Transmission mode   Gear box Gear box
Worktable
Table size (optional) mm 1800×2200
(2500×2500)
2500×2500
Division angle deg 0.001° 0.001°
Reference aperture mm Φ330H7 Φ330H7
Max. load on worktable kg 15000/20000 20000/25000
T-shot mm 24H7×150×11 24H7×150×15
Division precision sec 15" 15"
Repetitive locating precision sec 4" 4"
Transmission mode
X, Y, Z-axis   Direct-drive Direct-drive
W-axis   Belt-drive Belt-drive
Y-axis counterweight   Hyd. Type Hyd. Type
Cutting speed X/Y/Z/W m/min 10/10/10/5 10/10/10/5
Rapid traverse speed X/Y/Z/W m/min 10/10/10/8 10/10/10/8
Tool magazine and automatic toolchanger (optional)
Capacity of tool magazine   60 60
Tool selecting mode   Absolute Absolute
Tool changing type   Arm type Arm type
Tooling   BT/CAT/DIN #50 BT/CAT/DIN #50
Max. tool weight kg 25 25
Max. tool length mm 500 500
Max. tool diameter (no adjacent tool) mm Φ125/250 Φ125/250
Spindle and motor
Spindle motor kw FANUC 22/30 FANUC 22/30
Max. torque of spindle Nm 3002/4093 3002/4093
Precision
Locating precision of machine tool mm ±0.010 ±0.010
Repetitive locating precision of machine tool mm ±0.005 ±0.005
Others
Air pressure required kgf/cm² 6 6
Voltage requirement KVA 85 95
Tank capacity L 315 315
Floor area (length×width×height) mm 8450×6980×5040 9055×8500×8115
Machine weight kg 49000 55000




Main Futures

With nice appearance overall,symmetry coordinate layout . Horizontal boring machine bed, column, down the seat rails are rectangular, and good stability. Guide the use of refrigeration hardened, high wear resistance. Synchronous digital display, intuitive and accurate, can improve efficiency and reduce costs.

Characteristics of worktable
Indexing action is kept reliable and stable dependent on drive of large-diameter sliding surface and double gears 90°locating pins independently researched and developed by Dawei guarantees high precision. In addition hydraulic and T-bolts are used for solid clamp. Furthermore, backboard is used to prevent float of worktable under strong clamp of hydraulic and T-bots.
Characteristics of worktable
1. The rotary worktable is processed by precise manual scraping after grinding to ensure presion of contact and to provide perfect lubrication and abrasive resistance.
2. Design of lubricant chamber enables smooth operation of turntable even at the maximum load.
3. Brake characteristics:
a. Worktable is under uniform stress during multipoint brakes in circular uniform arrangement.
b. Release and locking are realized by means of oil pressure, and pressure cylinder is adopted to increase locking force.
c. Oil pressure locks worktable on chassis directly to realize perfect stability.
d. During brake locking is under axial force without center bias.
4. Double-gear drive eliminates excessive backlash and keeps perfect precision, and helical gear is adopted for transmission with advantages of good meshing, stable transmission, big contact ratio, reduction of load on each pair of gears and improvement of bearing capacity of gear.
5. Locating pins are designed at 0°, 90°, 180° and 270° orthogonal directions and can bear heavy cutting.
Design with emphasis on work efficiency of operators
Widening pedals of operators and shortening distance between workpieces and operating panel are helpful for improving efficiency of aligning and clamping operations.
Humanized design of control system
Simply and readily understood operating panel is favorable for convenience of operation, and the height and type of operating cabinet comply with ergonomic design.
Extremely high stability and maintainability
Rapid and simple daily check
Maintenance items of machine tool such as lubrication control units are centrally installed at the back of machine tool with convenience for check during daily maintenance.
Automatic tool touch probe
Because it can automatically detect the tool wear, damage degree and the offset value, can improve the operation convenience.
Automatic workpiece probe
The apparatus (TOUCH SENSOR) and the contact between the workpiece coordinate signal, automatically set the basic coordinate system of workpiece machining datum measurement after.
Linear scale
Using linear scale to improve the position precision, in order to machine high precision products.
